Description

Single port.

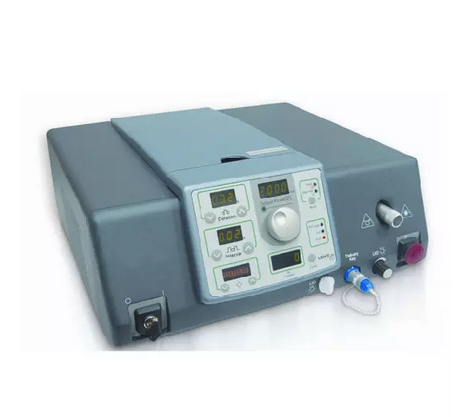

The following are the System Specifications for the LightLas 532 Ophthalmic Laser.
General Specification
Electrical Input: 100 to 230 Vac. 50/60 Hz Single phase
Power: 400W
Fuse rating: T3.15AH250V @ 100-230Vac (T ime Lag) Temperature Range: Transport: -10 to 70° C
Operating: 15 to 30° C Storage: -10 to 55° C
Relative Humidity Range: Operating: 30% – 85% non-condensing
Storage and Transport: Up to 95% non-
Condensing
Atmospheric pressure: Operating: 800-1060 mbar
Storage and Transport: 500-1060 mbar
Cooling System: Fan cooled and TEC’s for Laser Diode and Crystal
Dimensions (Total): 130mm(H) x 370mm(W) x 330mm(D)
Weight: 13 Kg (System) 20 Kg (Packed)

Treatment Laser
Laser Type: Diode Pumped Frequency Doubled YAG
Wavelength: 532 nm
Mode of Operation: CW
Power Output: 2 W Maximum to Patients Cornea. Power from
Delivery

Panel

Units laser aperture displayed on Remote Display

Power Adjustment: Variable from 0.05 to 2.0 W
Exposure Duration: 0.01, 0.02, 0.03, 0.04, 0.05, 0.06, 0.08, 0.1, 0.15 and
0.2 to 3.0s is 0.1s increment
Repeat Interval: Selectable from 0.01 to 3.0 secs and equal to or greater
Than exposure duration in same discrete steps as duration
Doctor Safety Filter: OD4 at 532 nm
Safety Class: Class 4
Power Display accuracy: Better than +/-20% of actual
Beam Divergence: < 0.2 NA

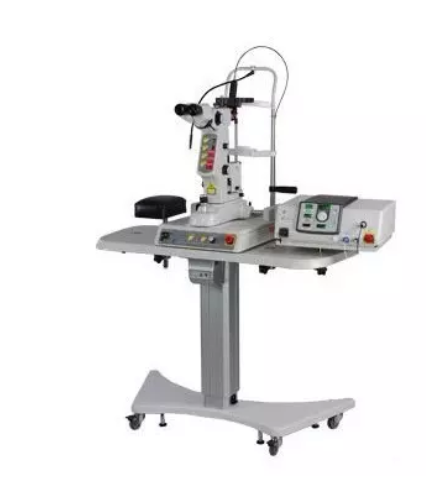

YAG LASER Technical Data

CE Mark approved according to MDD

Compact and light-weight for portability

Excellent Quality Optics for clear image and good laser delivery

Full Slit-lamp functions including 5 step magnification changer

Longer focal length for deep set eyes

Micro processor controlled with many built in safety features

CQ-YAG Crystal Laser Q-Switch for reliability

Anterior and Posterior YAG Laser Offset of 500 Microns

Treatment Laser Type: Nd:YAG
Wavelength: 1064nm
Mode: Fundamental
Q-switched
Energy: Continuously
adjustable from
0.2 to 10 mj
Spot Size 8 microns
Burst Mode: 1,2,3,pulses each burst. Separation between pulse is 25 µs
Pulse Width: 4 nano-sec ( typical )
Repetition Rate: Maximum 0.4s per pulse or 2.5Hz
YAG Laser Offset Shift: Continuously adjustable of up to 500µm both anterior

and posterior

around Aiming Focal Plane.
Focal Length: 107mm
Cone Angle: 16 Degrees
Magnification: 5 step
Slit-lamp CSO SL 950
Aiming Beam Laser: Dual beam 635 nm diode continuously variable intensity

to 200 µW
Electrical Power: 100V – 240V AC, 50 / 60 Hz
Cooling System: Air Convection.
Dimensions(TOTAL) 520mm(H) X 340mm(W) X 450mm(D)
Weight: 21kgms

Optional Accessories:

Ophthalmic Laser Lenses

Motorized stand and table ( C-Type or T-Type)

Beam Splitter and Observation Tube

Camera and Video Adapters
