Description

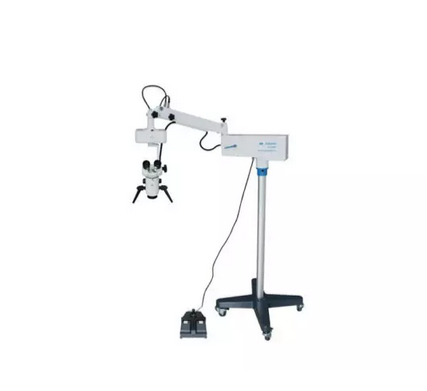

Model :RSOM-2000C

Technical Data
Characteristies:

Compact structure and complete functions.
Characteristics:
1,Compact structure and complete functions.
2,4X~24xzoom magnifications,horizontal movement of foot control and fine focusing.
3,Germany imported Schott optics ensure the sharp image and even field of view.
4,Applied in operations and fine examinations of ophthalmology,ENT ,surgery,etc.

yepiece Magnification 12.5×, 16×
Diopter Adjustment ±6D
View Angle of Eyepiece 30°~90°,optional 180° eyepiece tube
Magnification for Main Microscope(Diameter of Field) 4×~24× (φ41.5mm~φ7.5mm)
Focal Length of Objective Lens f=200 mm, optional f=175/250/300 mm
Pupilary Adjustment 50 mm ~ 75 mm
Maximum Resolution 119 LP/mm
Working Distance 190 mm
Light Source 15V/150W, medical cold reflection halogen lamp
Illumination Type 6°+0° coaxial illumination
Coaxial Illuminance ≥40,000 Lx
Filters Orange fliter( optional cobalt blue filter)
Reaching Radius of Arm 1020 mm
Adjustable Vertical Range ±250 mm
Fine Focusing Speed and Range ≤2 mm/s,30 mm
Speed for X/Y and Range ≤2 mm/s,50 mm×50 mm
Input Voltage AC 220V/110V±10%, 50Hz/60Hz
Power Consumption 220 VA
Fuse AC 250V   T4.0A, AC 125V  T8.0A
Electrical Safety Standard IEC 60601-1, Class I
Packing Volume 0.418 m3,2 cartons
Total Weight 87 kg
